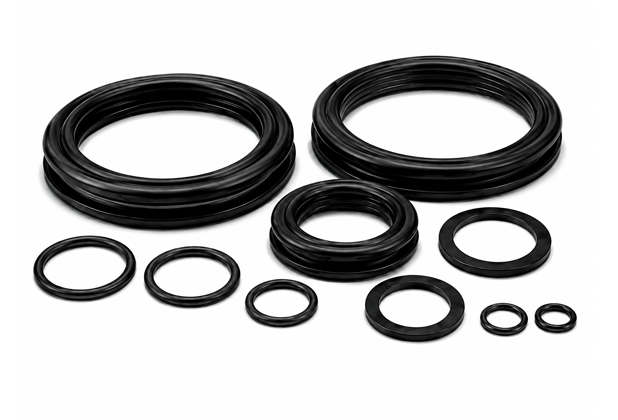

EPDM Rubber Sealing
EPDM (Ethylene Propylene Diene Monomer) rubber sealings are specially engineered for water pipe line applications, providing excellent resistance to water, weathering, ozone, and aging for reliable, long-lasting performance. WRAS Approved for safe use in potable water applications.
- Available in Wide Range of Sizes and Profiles

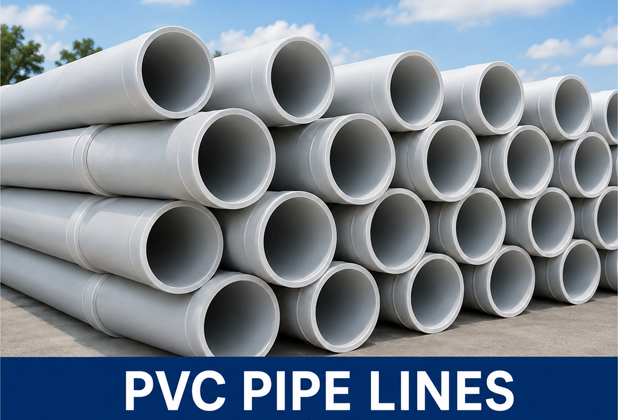

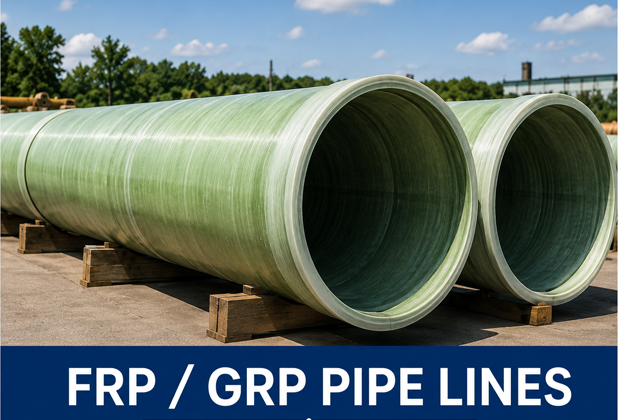

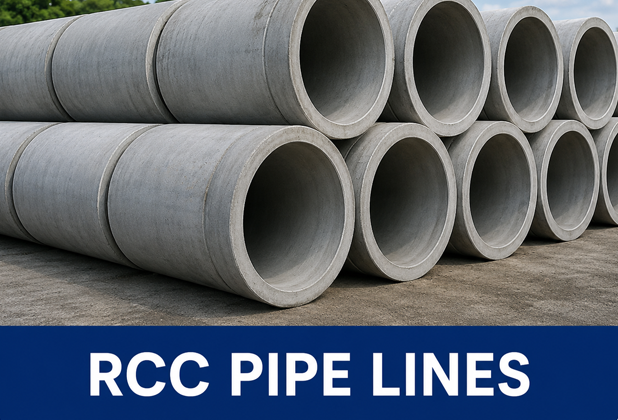

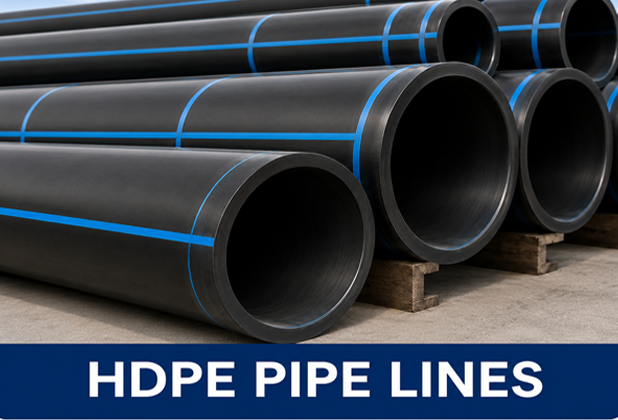

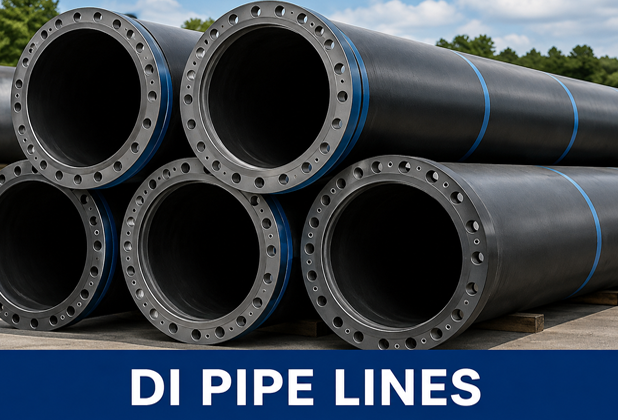

- Suitable for RCC, HDPE, DI, PVC, FRP and GRP Pipes
- WRAS Approved for Potable Water Applications
- Larger Diameter Sealings Available up to 2600 mm
Key Features and Benefits:
- Excellent Water Resistance – Designed for continuous contact with water
- Weather and Ozone Resistance – Performs well in harsh outdoor conditions
- High Elasticity and Flexibility – Ensures tight sealing and leak prevention
- Durable and Long Lasting – Resistant to aging, cracks and wear
- Wide Size Range – Available in larger diameters up to 2600 mm
- Easy Installation – Perfect fit for various pipeline systems
- Chemical Resistance – Resistant to diluted acids, alkalis and chemicals
- Temperature Range – -40°C to +120°C (Continuous)
EPDM (Ethylene Propylene Diene Monomer) rubber sealings are specially engineered for water pipe line applications, providing excellent resistance to water, weathering, ozone, and aging for reliable, long-lasting performance.
Available in a wide range of sizes and profiles, suitable for different pipe materials including RCC, HDPE, DI, PVC, FRP and GRP. WRAS Approved for safe use in potable water applications, and available in larger diameter sealings up to 2600 mm.
Technical Specifications
| Material | EPDM (Ethylene Propylene Diene Monomer) |
|---|---|
| Hardness | 60 ± 5 Shore A |
| Temperature Range | -40°C to +120°C |
| Color | Black |
| Density | 1.10 – 1.20 g/cm³ |
| Tensile Strength | ≥ 8 MPa |
| Elongation at Break | ≥ 250% |
| Compression Set (70°C for 22 hrs) | ≤ 25% |
| Water Absorption (24 hrs at 23°C) | ≤ 1.5% |
| Ozone Resistance | Excellent |
| Approval | WRAS Approved |
| Application | Water Pipe Lines (RCC, HDPE, DI, PVC, FRP / GRP, etc.) |

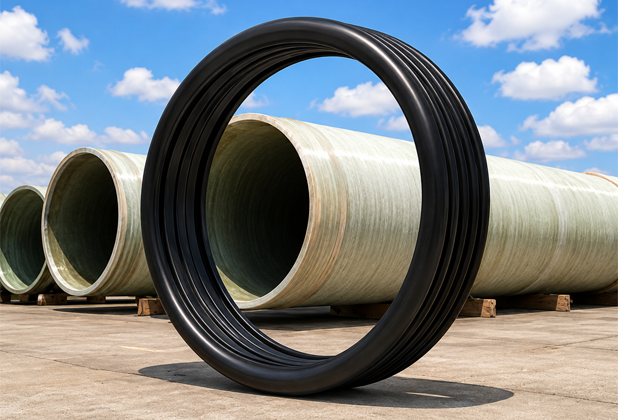

EPDM Larger Diameter Sealings
- Available in a Wide Range of Diameters from Small Sizes up to 2600 mm
- Custom Profiles Available as per Customer Requirements
- Suitable for Large Diameter Pipeline Projects
- High-Performance and Leak-Proof Sealing Solution
